High-Performance PDC Drill Bit For Maximum Drilling Efficiency
1. Description
Type and feature:
PDC bit can be customized for oil well,water well, mining, explorer well drilling.
Suitable formation:
Various of hardness rocks or mud except the hardest hardness or ununiform rocks like cobble.
Bit Diameters:
5 7/8",6",6 1/2",8 1/2",9 1/2",9 5/8",9 7/8",12 1/4",etc.Body type: Matrix or Steel Cutter Sizes:5/16"(8mm),1/2"(13mm),5/8"(16mm),3/4"(19mm),etc.
Blades:2~9 Wings.
For more information or special inquirement,pls feel free to contact us.
2. Product Parameters
| Size | 6-1/2'' |
| Blade | 5 |
| Connection | 3 1/2REG |
| Steel Body | Sutable for soft to medium hard chunks of homogeneous formation and
hard and abrasive high formation. |
| Matrix Body | Suitable for more harder information. |
| PDC 5-wing Concave Bit | |
| Type | Diameter
(mm) | Heigh
(mm) | Break Post
(pcs) | PDC Cutter
( pcs) | Nozzle
(pcs) | Nozzle Size
(mm) |
Normal
Reinforced | 75 | 120 | 2 | 8 | 6 | 8~10 |
| 94 | 125 | 2 | 8 | 6 | 8~12 |
| 113 | 130 | 2 | 12 | 6 | 10~12 |
| 133 | 140 | 3 | 12 | 6 | 10~12 |
3. Feature
a. Suitable for soft, medium and hard formations.
b. Super strong material promotes gauge wear resistance to provide long bit life.
c. The cutter’s back rake has been unique design, reducing the bit torque and increasing aggressiveness.
d. Cuttings removal and bit cooling for bits are optimized by matching the volume of rock removed by the cutter on each blade with the proportional fluid flow.

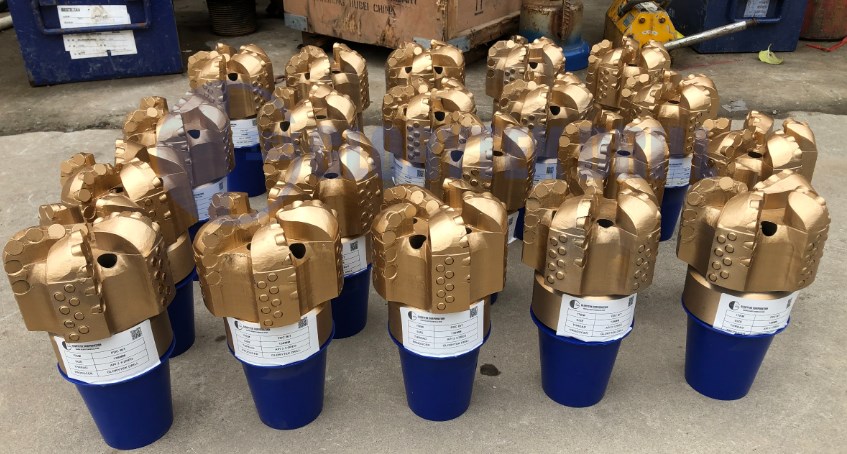

4.Detailed photo
5.Packaging & Shipping
Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
we have designed and made PDC drill bits for oil and gas industry, and still continue to innovate while using top of the line degree of workmanship and skill to make sure every hole opener as well as drill bit is crafted for your use and requirement to perfection by our experienced professionals.
FAQ
Q:How to get an exact quotation?
A: Please send us detailed information as below:
-Tricone bits(Diameter, IADC code)
-PDC bits(Matrix or Steel body, blades quantity, cutter size, etc)
Q:How about lead time,payment terms, delivery ?
A:We accept all regular payment terms including L/C, T/T, etc.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
